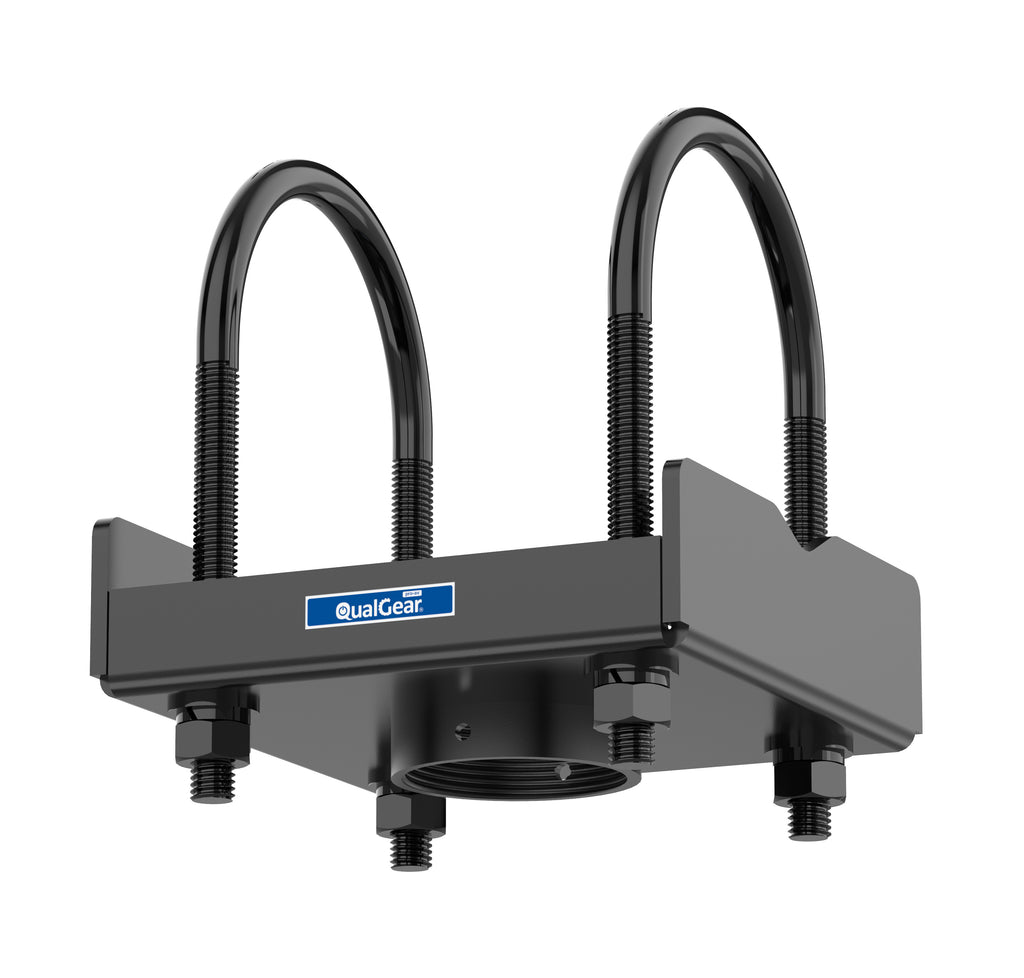

QualGear Pro-AV Truss Ceiling Adapter, QG-PRO-PM-TCA-B
The QualGear QG-PRO-PM-TCA-B is a truss ceiling adapter for the 1.5 in NPT threaded pipe standard, rated for installations up to 400 lb / 181 kg. It anchors a Pro-AV projector drop to round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high.
- Clamps to round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high.
- Accepts all standard 1.5 in NPT threaded pipes, for loads up to 400 lb / 181 kg.
- Attaches with 10 mm U-bolts.
- Works with QualGear projector mounts, including the QG-PRO-PM-50 series.
- Black finish matches QualGear Pro-AV pipes, connectors, and mounts.
Compatibility: all standard 1.5 in NPT threaded pipes; works with QualGear projector mounts including QG-PRO-PM-50-B and QG-PRO-PM-50-W.
Key specs
Interface: 1.5 in NPT threaded pipe
Load rating: up to 400 lb / 181 kg
Attachment: 10 mm U-bolts
Mounting surface: Round, square, or rectangular truss and I-beams up to 3 in / 76 mm wide by 3.5 in / 89 mm high
Color: black
In the box: ceiling adapter.
Pairs with a QualGear 1.5 in NPT threaded pipe and the QG-PRO-PM-50-B projector mount to complete the installation.
Installation manual: https://drive.google.com/file/d/1YX3nsALGzQAMfaNg1S5TusHVm-jyVhH9/view - covered by a 30-day RMA and US phone support at +1-972-423-5015.
